Veterinary
X-Ray
ClearRay 1500 (Vet)
DESIGNED BY VETERINARIANS – FOR VETERINARIANS
Every aspect of ClearRay Veterinary Systems is designed by Veterinarians with over 25 years of experience. The easy-to-use Clear Ray System takes advantage of the latest technology to make doing your job easier, faster, and better overall. System includes a MasterX 17×17″ Wired Cesium DR System with Voyance Acquire and PACS software.
​
Voyance PACS provides 10 DICOM viewer licenses for other computers in the office. Viewing software provides advanced Veterinary measurement tools and functionality.
​
Customizable
ClearRay systems are the most customizable, feature-rich Veterinary x-ray systems available today.
​
Made in the USA, Supported Locally
Our competitors’ products are built and supported overseas. That can result in unnecessarily long lead times for parts and service. With the ClearRay’s American-made design, construction and support, we are always local when you need us.
SPECIFICATIONS
High-End Materials
Manufactured from high-quality anodized aluminum, the Clear Ray’s sturdy column can be adjusted to fit low ceilings.
​
Optional Integrated 12″ LCD Touchscreen DR System
Fully integrated tablet with available software to operate and manage all your digital imaging needs.
​
Functionality
Our unique Omni-directional table design is the most versatile floating table currently on the market, with the greatest lateral range.
​
Silent
Rubber-cushioned feed reduces noise and minimize vibration, providing better operational quality.
Light-Weight
By reducing waste present in our competitors’ designs, we achieved the lightest over-all design, reducing shipping costs, and keeping your budget in mind.
​
Stability
Solid anchor points hold the entire system firmly in place to ensure smoother operation.
​
Ease-of-Use
Foot-controlled, one-touch function for easier animal management and image capture.
​
AVAILABLE OPTION
The Clear Ray Veterinary System is unique in the market for its unprecedented customizability, making it highly adaptable to any veterinary environment. These are the same of the custom options available with this groundbreaking new system:
• 12″ LCD touchscreen mounted to the retractable column or stand
• First-to-market with a motorized adjustable-height tube stand
• 180° motorized tilting tube stand (optional)
• Customizable table Width & Length dimensions
• Certified and non-certified LED/LASER collimator
• Fiber Resin Table Top
ClearRay 1700 (Vet)
DESIGNED BY VETERINARIANS – FOR VETERINARIANS
Every aspect of ClearRay Veterinary Systems is designed by Veterinarians with over 25 years of experience.
​
The durable, lightweight, and highly adaptable ClearRay System is the most feature-rich veterinary X-ray system available today.
​
CR1700 provides the option to upgrade to a 12″ LCD Touchscreen DR System. (1700DRI) This system comes with a fully Integrated tablet and available software to operate and manage all your digital imaging needs. With this upgrade, the generator and software can be controlled right from the tube stand.
​
System includes a MasterX 17×17″ Wired Cesium DR System with Voyance Acquire and PACS software. Voyance PACS provides 10 DICOM viewer licenses for other computers in the office. Viewing software provides advanced Veterinary measurement tools and functionality.
​
Manufactured from high-quality anodized aluminum, the ClearRay’s sturdy column can be adjusted to fit low ceilings. Our unique omni-directional table design is the most versatile floating table on the market, offering amazing lateral range. Silent, Rubber-cushioned feet reduce noise and minimize vibration, providing better operational quality. By reducing waste present in our competitors’ designs, we achieved the lightest over-all design, reducing shipping costs, and keeping your budget in mind.
​
Solid anchor points hold the entire system firmly in place to ensure premium operation. Foot-controlled, one-touch function for easier animal management and image capture.
SPECIFICATIONS
High-end Materials
• Non-Elevating Table
• Table Top: 31″D x 60″W, 4-way float top. Floating range of +/-11inches longitudinal and +/-3 inches transversal
• Electromagnetic Braking System
• Fixed DR Detector Holder
• Maximum Allowable Lifting Weight: 600 lb.
• Manual Rotating Tube Mechanism, locks in place at 45 degrees increments
​
CPI Generator
• 32KW, Single Phase Generator
• 40 –125KV Range
• 10 –400 mA Range
• 0.1–100 mA Range
• Exposure Time Range 1ms–6.4 s
• Technique Selection: kV/AEC, kV/mAs, kV/ma/ms
​
Toshiba X-ray Tube
• Nominal Radiographic Tube Voltage: 40 –150 kV
• Nominal Focal Spot: Large 2mm, Small 1mm
• Anode Target Angle: 12degrees
• Anode Heat Content: 140 kHU
​
Manual Vet LED/LASER Collimare Collimator
Foot Switch for Exposure
20’High Voltage cable pair with federal terminals on both ends
ClearRay 2000 (Vet)
Every aspect of ClearRay Veterinary Systems are designed by Veterinarians with over 25 years of experience. The easy-to-use Clear Ray System takes advantage of the latest technology to make doing your job easier, faster, and better overall. System includes a MasterX 17×17″ Wired Cesium DR System with Voyance Acquire and PACS software.
​
Voyance PACS provides 10 DICOM viewer licenses for other computers in the office. Viewing software provides advanced Veterinary measurement tools and functionality.
SPECIFICATIONS
High-end Materials
– Elevating Table Top with Sleek, One Column Design
– Table Top 31 inches deep by 60 inches wide
– 4 way float table top, with floating range of +/- 11 inches longitudinal and +/- 3 inches transversal
– Electromagnetic Braking System
– Fixed DR Detector Holder
– Maximum Allowable Lifting Weight: 600 lb.
– Manual Rotating Tube Mechanism, locks in place at 45 degrees increments.
​
CPI Generator
– 32 KW, Single Phase Generator
– 40 – 125 KV Range
– 10 – 400 mA Range
– 0.1 – 100 mAs Range
– Exposure Time Range 1 ms – 6.4 s
– Technique Selection: kV/AEC, kV/mAs, kV/ma/ms
​
Toshiba X-ray Tube
– Nominal Radiographic Tube Voltage: 40 – 150 kV
– Nominal Focal Spot: Large 2 mm, Small 1 mm
– Anode Target Angle: 12 degrees
– Anode Heat Content: 140 kHU
– Manual Vet LED/LASER Collimare Collimator
– Foot Switch for Exposure
– 20’ High Voltage cable pair with federal terminals on both ends.
SkanVet Alta
Digital Veterinary X-Ray Table Solution
SkanVet Alta Series
Type A, Type I & Type X
• Digital Radiographic table for veterinary applications.
• 32 kW output power, 40 to 125 kV, 25 to 400 mA with auto association to kV, 0.1-320 mAs.
• Double focus 0.6/1.3 rotating anode RX tube.
• Mains voltage compensation, filament stabilization and overload protections.
• 2 or 3 points technique (3 points on Type A only).
• Integrated 10” or 19” high res. color touch display.
• Wired or Wireless 17”x17” or 14”x17” digital detector.
• Fixed, 100 cm SID.
• Standard removable cassette tray (Bucky).
• Optional X-ray grid.
• 4-way floating tabletop.
• Foot-bar operated mechanical brakes.
• Integrated or external PC workstation with user friendly TigerView 8 Veterinary imaging software.
• Animal-patient database, APR’s for separate anatomies.
• Password protected exposure counter (on Type A only).
• Single action foot & hand-switch.
​
RE Image Retrofit Combo for Veterinary
• Tethered or Wireless 17” x 17” or 14”x 17” Digital Flat Panel Detector for use with existing
• RX imaging table as retrofit digital solution.
• Includes customized TigerView 8 Veterinary digital imaging and treatment software.
• Scintillator type: Direct Deposit CsI.
• Active areas: 433.7mm x 354.8mm (17” x 14.9”) or 434mm x 434mm (17” x 17”).
• Pixel Array: 2816 x 2304 or 2816 x 2816.
• Pixel Pitch: 154 μm.
• Limiting resolution: 3.25 lp/mm or 3.3 lp/mm.
• Image acquisition time: 2-3s (wired), 4-5s (wireless).
• Housing material: Carbon Fibre (front) & High Strength Aluminium (back).
​

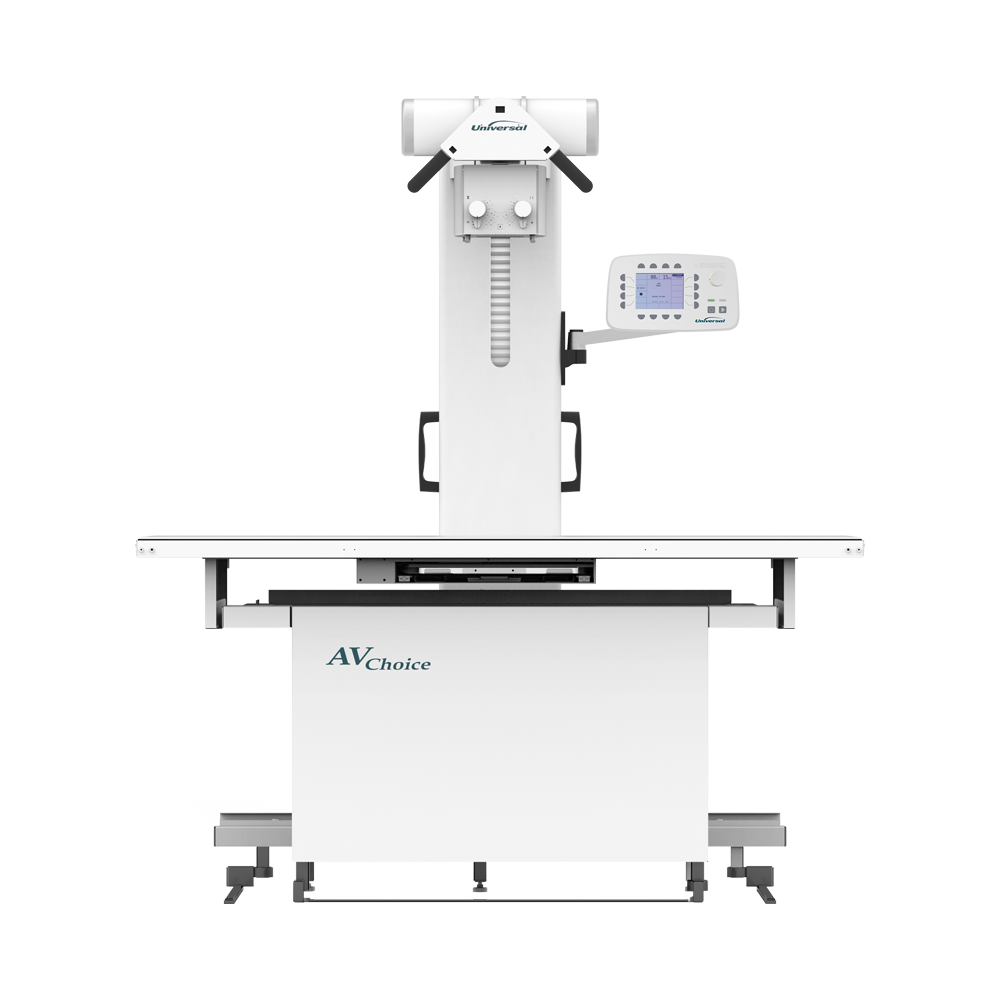

Universal Vet
The Universal Veterinary System is equipped with an integrated tube stand with variable SID and an anatomically programmed, high-frequency generator providing an all-in-one imaging solution. Our veterinary systems are perfect for the veterinarian who seeks affordability and maximum capability, especially in smaller imaging environments.
The Universal Veterinary System features an angulating tube arm, 2-way or 4-way float top table, and can be configured with a fixed or variable SID tube stand. The variable option allows for a greater range of motion that provides technologists with enhanced patient positioning.
The system features several modifications that provide ease-of-use and convenience. The perimeter of the tabletop has a urine trap to permit easy cleanup. Caring for animals can be stressful and require uninterrupted attention. With this in mind, our veterinary tables come equipped with easy to reach operator footswitch/treadles on all sides to allow veterinarians the ability to focus on the animal, while also operating table movements.
