Radiographic
(U arm)

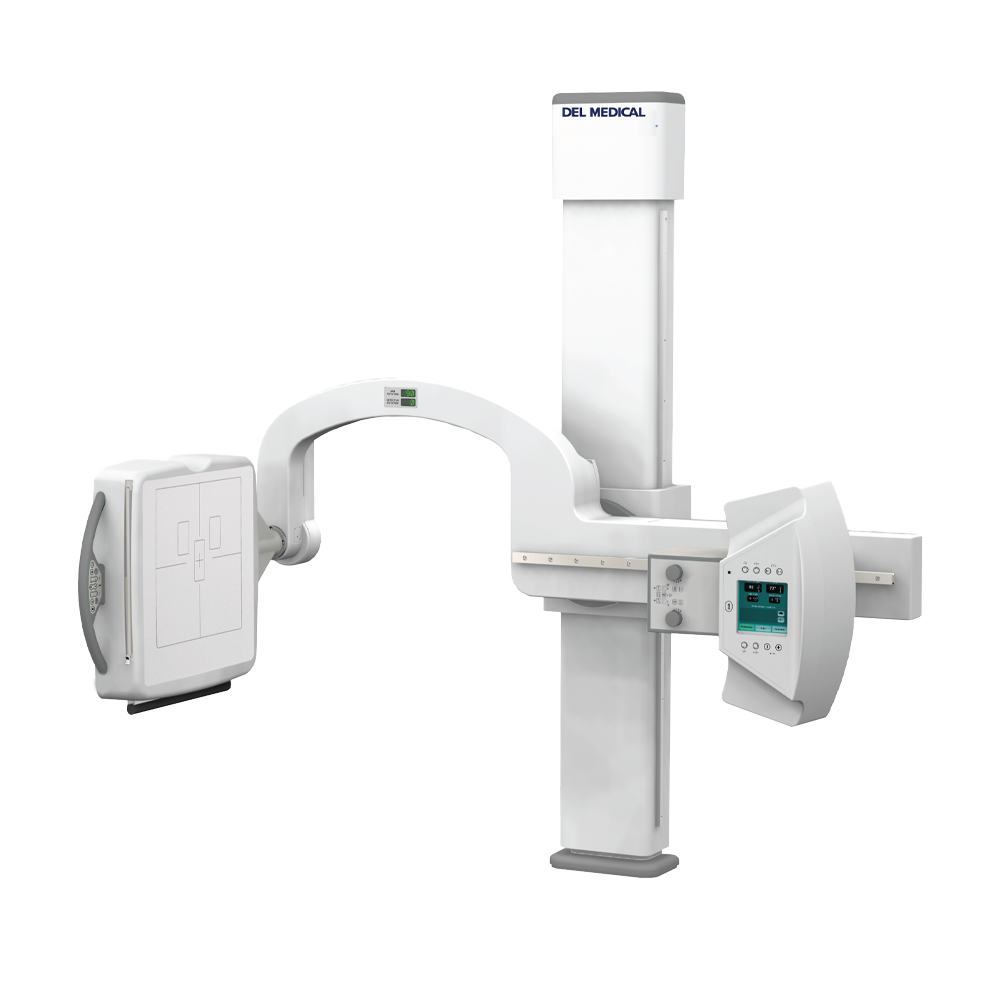

Del U-Arm

Del U-Arm

The U-Arm is a fully motorized radiographic system designed to automate the imaging process with pre-programmed positioning and full generator integration that can be conveniently controlled from its technologist-friendly touchscreen console.


Featuring a linear U-Arm, the system tube and image receptor are always perfectly aligned regardless of U-Arm arm position.

This is especially useful when performing auto-stitch applications focusing on the legs and back.

The U-Arm can store up to 25 pre-programmed positions allowing for a fast setup of the most frequently used applications. These positions can easily be selected from the tube mounted touchscreen.

MasteRad URM1100
MasteRad URM1100

MasteRad URM1100

Integrated Digital U-Arm with MasterX system: 17”x 17” Tethered DR panel system Voyance® Software & PACS

The best choice for Limited Space and Budget

A single panel, multipurpose Universal Arm that provides a Cost Effective, Ergonomic Solution for the entire range of radiographic exams.
A Motorized Universal Stand with basic mobile table completes the configuration along with a MasterX 17” x 17” wired DR system along with Voyance® Software and PACS.
Fast and accurate acquisition of image position via RAPS (Remote Auto Positioning System).


Fully Motorized and Always Aligned

MasteRad URM1100 is fully-motorized to optimize efficiency and as the Tube Head, Collimator and Detector are always aligned. This makes exams involving leg or spine stitching simpler and faster.

Movement Controls at your Fingertip with Remote Auto Positioning System

MasteRad URM1100 features system controls on the Tube Head and at side of the Detector Housing, thus simplifying staff’s image positioning and increasing workflow. Fast and accurate acquisition of image position via RAPS (Remote Auto Positioning System).

Exam Efficiency

The motorized swivel arm and rotating Detector housing can handle a wide range of exam positions for patients of all sizes. Regardless of whether the patient is sitting, standing or laying on the mobile table, MasteRad URM1100 provides extensive vertical and SID travel making it perfect for complete head-to-toe imaging.

Safe Brakes and Anti-Collision Sensors

Electromagnetic brakes and Anti-Collision sensors assure safety for patient and staff.

Optional Mobile Table

MasteRad URM1100 can perform a wider range of exams with the mobile table which allows staff to perform cross table exams while patient lies on the table. The table is easy to move and can support over 400 lbs.

Persona U

Persona U

Persona U
Digital Radiography U-arm System
Persona U offers a simplified space-saving design that’s built to last and perform. The standard system includes u-arm, generator, generator console, 17×17″ detector and FDX Console workstation. Component choices include various generator sizes, building power compatibility and auto or manual collimation. Other options include: choice of fixed and motorized height mobile patient tables and choices of secondary detectors.

Persona U offers a simplified space-saving design that’s built to last and perform
Small footprint and low installation cost
User-friendly graphic menus and tube display
Auto-positioning allows you to perform a wide range of exams quickly and easily
Simplified 2-3 step exam processing with advanced automated image processing
Images display within 2-7 seconds
High sensitivity detector technologies for optimal low dose performance from pediatrics to bariatrics
Large, 17 x 17” (43 x 43cm) capture field of view
Automatic collision avoidance for patient & user safety

Simple Automatic Operation
Touch controls and display are easily accessible at the tube head. Movement controls are conveniently located at the detector side, and a helpful hand-held remote further simplifies precise positioning.

Cost and Space Saving Design
Persona U provides freedom to perform virtually every type of radiographic exam, including upright, seated and supine, even knee and skull exams. Its innovative design simplifies positioning workflow, since its x-ray tube and detector are always aligned regardless of tilt position or detector angle.


Acuity UDR

RadmediX Full Auto U-Arm
Digital Radiography U-arm System

Radmedix has introduced its compact advanced u-arm x-ray system which features faster radiography imaging through motorized fully automatic positioning. This allows the system to be moved into an exact position per the exam selection through our intuitive touchscreen display console or by the included handheld wireless remote control. No longer spend unnecessary time manually moving the system, just select one of your pre-programmed positions and you’re ready to go.

Simplified Operation at your Fingertips

  • Immense 10" touchscreen display console that controls all system components while providing the operator with simplicity and ease of use.

  • Remote diagnostics for troubleshooting anywhere in the world. No more operation confusion.

  • Fast setup capability, you can pre-program up to 60 positions for any exam type.

  • Build your own projection list then the system automatically sets the SID and height.

Motorized Full Auto Movement

The Acuity UDR automatically moves into position through customizable pre-programmed positions that you can save into the system to recall at any time through the touchscreen console or wireless remote.

Effortless Exam Positioning

Quick, easy stand positioning enables a wide spectrum of upright imaging of the chest, abdomen, and other skeletal exams as well as supine imaging of patients on the optional patient imaging table including various oblique techniques. Full auto movement makes patient positioning FASTER and EASIER than ever before.
