Radiographic
(medical)

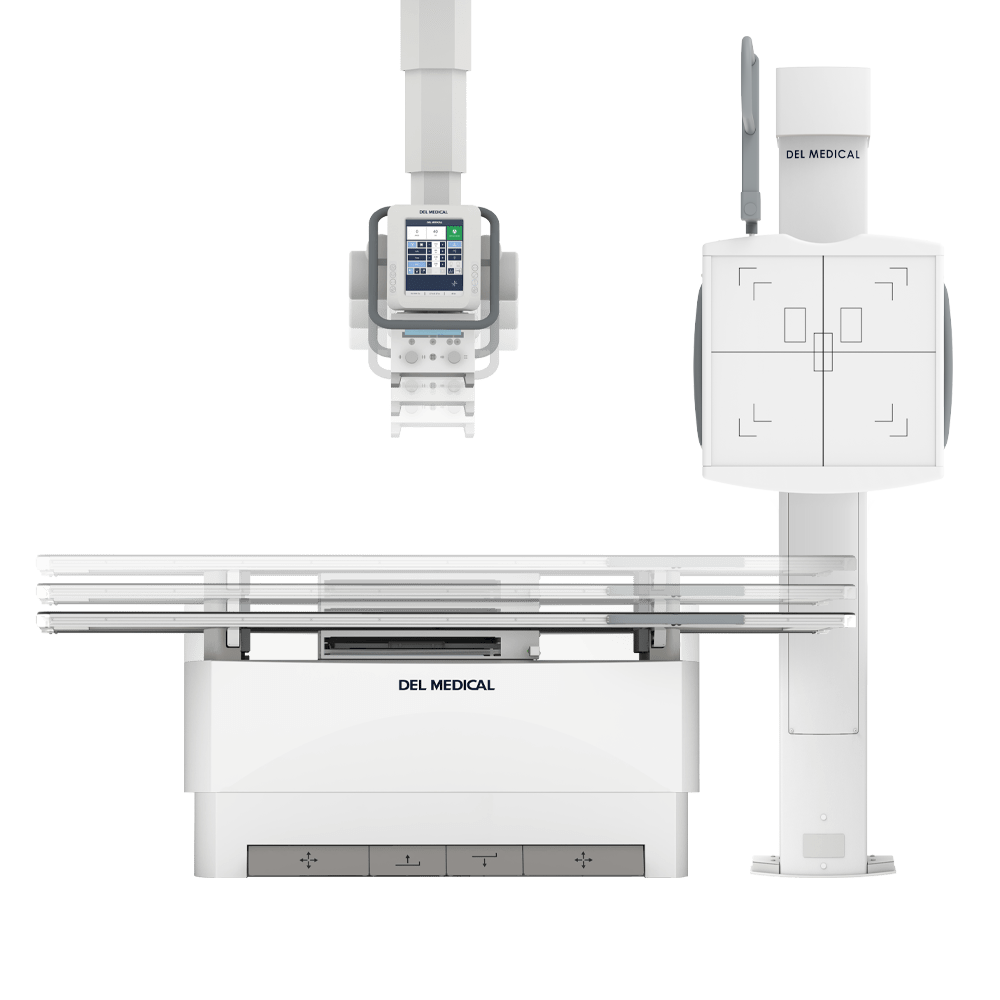

Acuity FDR+

Acuity FDR+

The Acuity FDR+ is our most advanced feature packed x-ray system that covers all digital radiography needs for any practice. If you have the space and want the very best, look no further than the Acuity FDR+. The standard configuration of this x-ray system is a floor mounted tube stand, vertical bucky stand and bucky table. This system has advanced safety workflow and positioning features. It also has an intuitive, 10” user-friendly touchscreen that provides seamless operation of your radiographic system. It displays graphical tube angulation, SID values, and tube to bucky auto sync. With such a wide range of features, the Acuity FDR+ is considered our highest performing x-ray system offering unparalleled price-performance ratio.

Intuitive 10” touchscreen display for simplified system operation
Up to 60 semi-automatic pre-set positions of stand height, orientation, and SID

Removable grid
Integrated High Frequency X-ray Generator, with customized Anatomical Programming (APR) from the digital technologist workstation
Integrated high performance digital flat panel DR detector, with fast image display and exceptional image quality
Occupies the smallest footprint within an 8’ ceiling without limiting full-functionality

Technologist friendly features with collimator and system movement controls from Bucky
Integrated safety features with multiple emergency- stop buttons and collision sensors
6 Way Elevating Float Top Table
Optional: (AEC) Automatic Exposure Control
Dual laser LED collimator

FC X-Ray Medlink
FC X-Ray Medlink

FC X-Ray

Medlink's Floor-Ceiling Mounted Digital Radiography System

Our system  Model GXR-32S, is a state-of-the-art, diagnostic digital radiography system designed for today’s high-volume imaging departments.

Featuring:
32kW High frequency X-ray generator with constant potential power output for consistent high quality images
Floor-Ceiling Mounted Tube Stand
4-Way Float Top Table
Vertical Wall Bucky Stand
VIVIX 1417 Wireless DR Panel with VXvue acquisition software
(5) Year Manufacturer Warranty on both the system and DR Panel.


Floor-Ceiling Mounted Tube Stand

Featuring:
Tube Rotation Angle: ±180°(Display: ±135°)
Tube Stroke:
Longitudinal: Max 82.7 in (2,100 mm)
Transverse(Lateral): 8.7 in (220 mm) Center detent
Vertical: 52.4 in (1,330 mm)
16.9 in - 69.3 in (430-1,760 mm) from floor to focus
Lock(Brake): EM Lock, Switch on/off
Column Rotation: 90°step
Electrical Rating: 24VDC,3A
Dimension: 81.1 in (H) x 44.9 in (D)


4-Way Float Top Table
Featuring:

Tabletop Max Patient Weight: 300kg (660lbs)
Tabletop Movement:
Longitudinal: 39.4 in (± 19.7) in
Transverse(Lateral): 9.8 in (± 4.9) in
Detector Movement: Longitudinal:13.8 in ( 350 mm)
Tabletop Size: 86.6 in (W) x 29.5 in (D) x 2.75 in (H)
Bucky Type: Moving Grid: FD 34-44inch ; 103 lpi ratio10:1
Lock(Brake): EM Lock, Beam sensor on/off
Dimension: 86.6 in (W) x 29.5 in (D) x 26 in or 28 in (H)


Vertical Wall Bucky Stand
Featuring:

Detector Movement:
Vertical 54.72 in (1,390 mm)
16.5 in - 71.25 (420-1,810 mm) from floor to Bucky center
Bucky Type: Moving Grid: 103 lpi, ratio 8:1, 4.26 ft(130cm) grid
Lock(Brake): EM Lock, Foot switch on/off
Electrical Rating: 24VDC, 1A
Dimension: Max 75.6 in (H) x 29 in (W) x 16.14 in (D)


VIVIX 1417W Cesium Wireless DR Panel and Workstation
Featuring:

Active area of 14" x 17"
High spatial resolution with 140um pixel array
Stable and reliable automatic exposure detection (Anytime™)
Fast wireless communication by IEEE 802.11n (Inside AP™)
Viewer software running on Windows™ OS (VXvue™)
Ready-to-go Plug and Play System
Dell Monitor
CPU: Intel i7 Quad Core Processor
RAM: 16GB DDR4
OS: 256GB SSD
DATA: 1TB or 2TB Raid1
24" Touchscreen Monitor
Workstation includes 5-year Manufacturers Warranty
Tablet upgrade available


VXvue Image Acquisition Software
The VXVUE acquisition software is an award winning intelligent software solution which utilizes the most advanced imaging processing.

Featuring:

Advanced Image Processing with PureImpact™
Fine Details without Visual Artifacts
Soft Tissue Delineation
Non-grid Chest Processing
Grid Line Removal with Clear Resolution
Fine Tuning
Easy Customization
Optimized for Various Applications
Patient Multitask Management

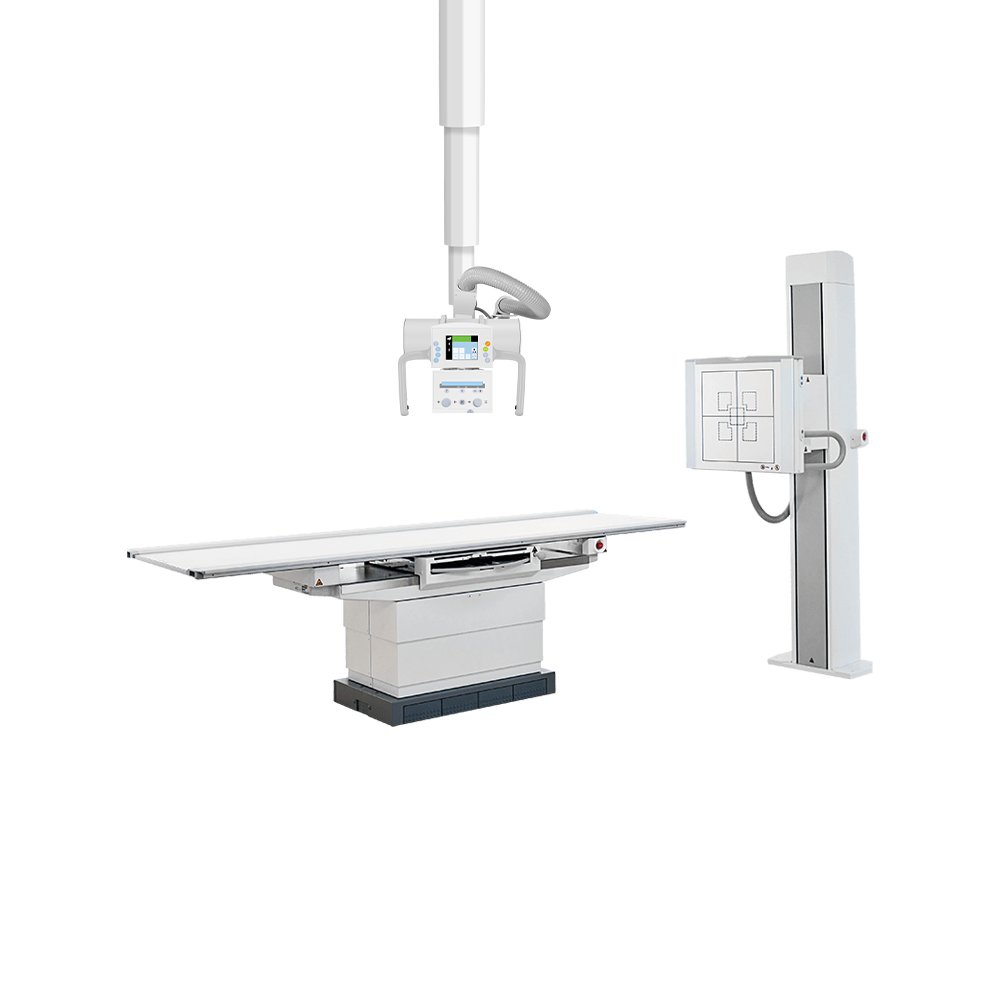

FDR Clinica X

FDR Clinica X

FDR Clinica X


The FDR Clinica X offers affordability with advanced functionality.

This versatile general radiology room is perfect for low to medium-volume hospital, orthopedics and outpatient settings. Features rotating trays with built-in detector connectivity. Image quality and dose performance are optimized with Fujifilm’s high-sensitivity detectors and refined image processing technology. The FDR Clinica X OTC Suite is available with manual or automatic tracking systems and various generator and tube combinations.

FDR Clinica X is a scalable digital x-ray suite for hospital radiology and outpatient imaging departments of all sizes, providing affordability and versatility without compromise. Step up your imaging to deliver Fujifilm’s innovative image processing and high-sensitivity image acquisition technologies to your patient exams.

FDR Clinica X is scalable to meet any department’s budgetary and workflow requirements. The system and its generator controls are fully integrated with Fujifilm’s FDX Console PLUS technologist workstation and lightweight, durable and dose-efficient FDR DEVO II, III and FDR ES detectors.

Configurations—full radiographic suite systems include generator, floor mounted tube, chest stand and table. Chest stand-only and table-only configurations are available as well. Choices of options include generator sizes and main power compatibility, single-hand operation or rotating bucky tray(s), built-in detector connections, auto or manual collimation, auto or manual tube height tracking and automated long-length stitching. Vertical Auto-Tracking (optional): provides synchronized motorized movement of the tube crane’s vertical axis to maintain precise centering between the x-ray tube and imaging detector of the table or chest stand, simplifying positioning and eliminating workflow steps.


Features:

Floor Stand System
Full-featured solutions for tight spaces, lower room preparation costs and limited building power requirements.

Multi-function stand and table supporting efficient workflow
FDX Console PLUS with integrated generator control, optimizes workflow and simplifies image quality

FDR Clinica X OTC Suite

FDR Clinica X OTC Suite

FDR Clinica X OTC Suite


FDR Clinica X Overhead Tube Crane

Manual and auto tracking systems with various generator and tube combinations. The FDR Clinica X offers affordability with advanced functionality. This versatile general radiology room is perfect for low to medium volume hospital, orthopedics and outpatient settings. Features rotating trays with built in detector connectivity. Image quality and dose performance are optimized with Fujifilm’s high sensitivity detectors and refined image processing technology.

About the FDR Clinica X
FDR Clinica X is a scalable digital x-ray suite for hospital radiology and outpatient imaging departments of all sizes, providing affordability and versatility without compromise. Step up your imaging to deliver Fujifilm’s innovative image processing and high-sensitivity image acquisition technologies to your patient exams.

FDR Clinica X is scalable to meet any department’s budgetary and workflow requirements. The system and its generator controls are fully integrated with Fujifilm’s FDX Console PLUS technologist workstation and lightweight, durable and dose-efficient FDR DEVO II, III and FDR ES detectors.

Ceiling Suspended Tube Stand System Configuration
With easy articulation and a rotating display, the tube extends as much as 63 in. from the ceiling. Optional automated tube height tracking, collimation and centering with the height of the upright or table, eliminates workflow steps to speed exams. Allows the technologist to focus on the patient.

FMT18M

FMT18M

The FMT18M Digital Radiographic System was designed with features proven to optimize workflow, patient care, and technologist productivity. The floor-mounted configuration makes it ideal for smaller imaging environments requiring low ceiling installations, such as urgent care and orthopedic facilities. FMT18M systems are built to withstand medium to high volume throughput.


An advanced, 10.4″ technologist-friendly touchscreen console provides large text readouts and integrated operation of the tube stand. Ergonomically placed movement identification buttons provide optimal accuracy when setting up views. Take advantage of extensive longitudinal and vertical movements, as well as a 180° rotating tube column enabling positioning for cross-table lateral exams.

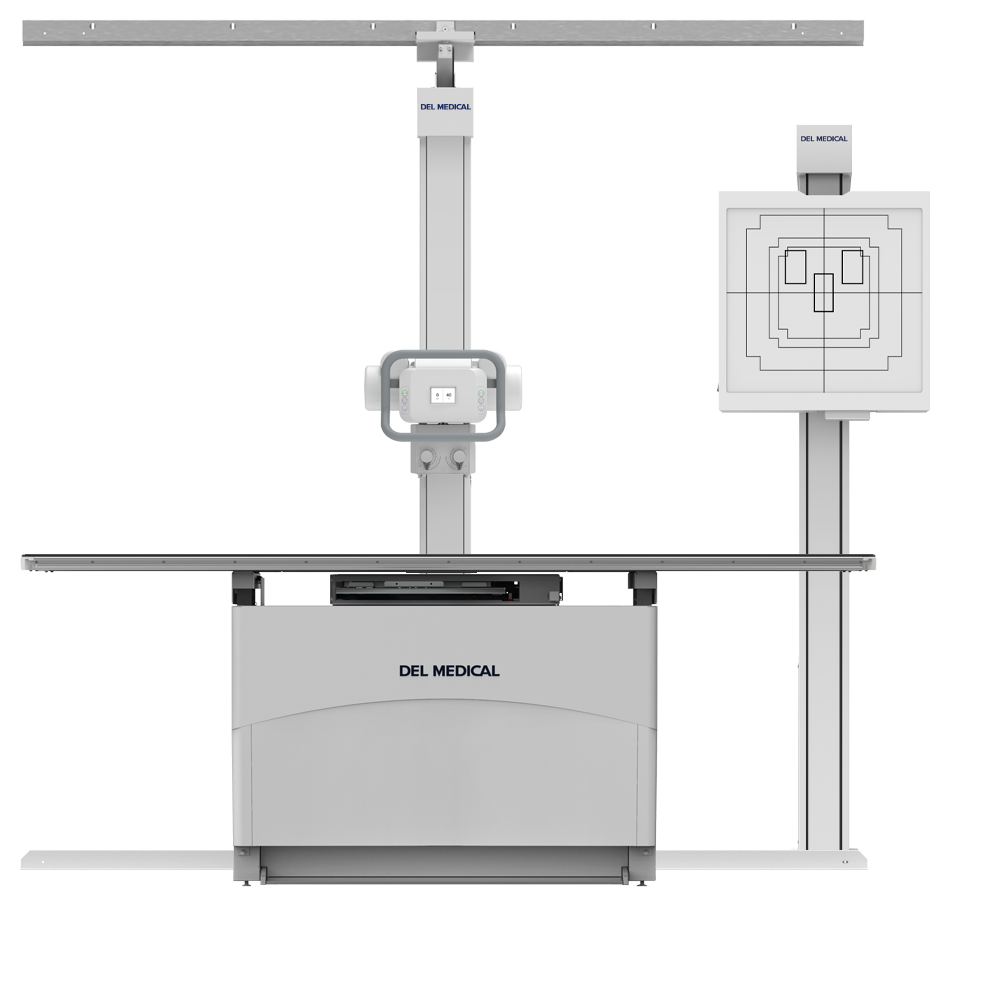

FWFC

FWFC

The DEL MEDICAL FWFC System oers an affordable, flexible solution designed for medical imaging centers and urgent care facilities looking to maximize space and minimize room modifications. It features a secure floor rail and an upper wall or ceiling mounted rail for installation flexibility and effortless longitudinal travel and quick positioning.

The FWFC System might be the most aordable radiographic system in the DEL MEDICAL product line, but its outstanding build quality and performance make it a perfect fit for lower volume facilities looking to enhance their diagnostic imaging capabilities. Built in the USA, it is prepared to deliver many years of continuous use and exceptional user-satisfaction.

The FWFC rotating tube stand offers exceptional versatility and accuracy. Its 180° column rotation, centering detent, electrical vertical and longitudinal locks, and 9 in (23 cm) transverse travel provide technologists with fast positioning and comprehensive accessibility.

Power and high tension cables are encased in a flexible housing made of non-porous material. This protective tubing provides space-efficient, safe, and easy to clean cable routing.

MasteRad MX30 (Medical)

MasteRad MX30 (Medical)

MasteRad™ MX30

MasteRad™ MX30 is a versatile floor mounted x-ray room providing a complete radiology solution. Designed for fast & easy installation, with elevating & non-elevating table options as well as MasterX system integration option (Voyance® acquisition software and MasterX Cesium DR system).

Electromagnetic brakes throughout system
Modern ergonomic design
Designed for fast and easy installation
Generator upgrade options: 40kW, 50kW, 65kW, 80kW
Tube upgrade options: 200kHU, 300kHU, 400kHU


System features

Open base for easy access and cleaning
Fiber resin, 4-way floating tabletop
Tabletop measures 84”L x 31W”
Movable Bucky that can accomodate either 14×17″ or 17×17″ panel
Bucky uses an electromagnetic locking system

MI-2-X

MI-2-X

Performance, Versatility, and Value
Designed for high volume throughput for hospitals, orthopedics and medical imaging facilities. This X-ray Unit can perform a broad range of exams while optimizing technologist productivity and patient workflow. Simplicity and functionality provide broad positioning capability for patient procedures, including cross table laterals.
Ideal for a variety of clinical uses
Feature-rich controls and ease of use enables the technologist to focus on patient care
High-Frequency 32kW Generator
Elevating, four-way float, flat top for easy transfer and positioning of patients


Simple User-Friendly Design
Easy to read LCD shows SID continuous to table-top and table receptor with discrete SID of 40" and 72" to the wallstand
Cross-table views are easily accomplished using the rotational and transverse positioning capabilities
10 ft. floor track allows for off ­table and weight bearing exams and is customizable down to 8 ft
Flat, four-way floating top permits easy transfer and positioning of patients
Four-pedal design allows for easy accessibility to table lock release


Ergonomically Designed Wall Stand
Center or side mounted for patient and/or configuration flexibility
17 in. par speed Bucky
Heavy duty manual cassette tray
Grid 103 lines, ratio 10:1



OTC12S

OTC12S

The OTC12S Radiographic System delivers enhanced patient comfort and optimized workflow. Precisely designed to withstand high volume throughput in hospital radiology departments, medical imaging centers, and large orthopedic facilities with the need to perform a broad range of radiographic studies.


he OTC12 tube crane highlights a color touch display which displays tube angulation and SID values. Color-coded movement identification buttons provide optimal precision when setting up views. Effortless movements are controlled by an electromagnetic braking system enabling fast and secure readjustments of the tube head. Its five-tier telescoping column delivers exceptional vertical movement of 71 in (180 cm), capable of performing complete head-to-toe radiographic procedures including upright weight-bearing and recumbent tabletop exams.

OTC18S

OTC18S

The DEL MEDICAL Straight Arm is an economical and space-efficient x-ray system that can perform a comprehensive range of radiographic procedures. Its flexibility permits imaging of patients sitting or standing, as well as recumbent when an optional mobile table is present.


The system’s counter-weighted design promotes smooth and precise adjustments with the use of just one hand. The Straight Arm operates on a single plane, meaning the x-ray tube and image receptor will always be perfectly aligned, regardless of positioning.

Safety enhancing electromagnetic brakes apply to all system movements except for the tilting receptor tray, which engages at 0°.

Premium FM
Premium FM

Premium FM

Medlink's Floor Mounted Digital Radiography System

Our system  Model GXR-40S-B, is a state-of-the-art, diagnostic digital radiography system designed for today’s high-volume imaging departments.

Featuring:
40kW High frequency X-ray generator with constant potential power output for consistent high quality images.
Floor Mounted Tube Stand with easy-to-use touch screen console.
6-Way Float Top Table with extended travel capabilities.
Vertical Wall Bucky Stand.
VIVIX 1417 Wireless DR Panel with VXvue acquisition software.
(5) Year Manufacturer Warranty on both the system and DR Panel.


Premium Floor Mounted Tube Stand

Featuring:
Motorized bucky tracking and Synchronization
3.0 Rail Touch Screen 7” LCD
Tube Rotation Angle: ±180°(Display: ±135°)
Tube Stroke:
Longitudinal: Max 82.67 in (2,100 mm)
Transverse(Lateral): 8.66 in (220 mm) Center detent
Vertical: 52.36 in (1,330 mm)
[17 in - 69.2 in (430-1,760 mm) from floor to focus]
Lock(Brake): EM Lock, Switch on/off
Column Rotation: 90°step, electric or foot push switch
Electrical Rating: 24VDC,3A
Dimension: 81 in (H) x 44.9 in (D)


Premium 6-Way Float Top Table
Featuring:

Motorized cassette tray for tracking with X-ray tube
Tabletop Max Patient Weight: 300kg (660lbs)
Tabletop Movement:
Longitudinal: 39.3 in (±19.6 in)
Transverse(Lateral): 9.84 in (±4.9 in)
Vertical Travel: 11.8 in (21.6 in - 33.46 in)
Detector Movement: Longitudinal: 13.8 in (350 mm)
Tabletop Size: 86.6 in (W) x 31.9 in (D) x 1.8 in (H)
Bucky Type: Moving Grid: FD 34-44inch ; 103 lpi ratio10:1
Lock(Brake): EM Lock, Foot switch on/off
Dimension: 86.6 in (W) x 31.9 in (D) x 33.5 in (H)


Vertical Wall Bucky Stand
Featuring:

Detector Movement:
Vertical 54.72 in (1,390 mm)
16.5 in - 71.25 (420-1,810 mm) from floor to Bucky center
Bucky Type: Moving Grid: 103 lpi, ratio 8:1, 4.26 ft(130cm) grid
Lock(Brake): EM Lock, Foot switch on/off
Electrical Rating: 24VDC, 1A
Dimension: Max 75.6 in (H) x 29 in (W) x 16.14 in (D)


VIVIX 1417W Cesium Wireless DR Panel and Workstation
Featuring:

Active area of 14" x 17"
High spatial resolution with 140um pixel array
Stable and reliable automatic exposure detection (Anytime™)
Fast wireless communication by IEEE 802.11n (Inside AP™)
Viewer software running on Windows™ OS (VXvue™)
Ready-to-go Plug and Play System
Dell Monitor
CPU: Intel i7 Quad Core Processor
RAM: 16GB DDR4
OS: 256GB SSD
DATA: 1TB or 2TB Raid1
24" Touchscreen Monitor
Workstation includes 5-year Manufacturers Warranty
Tablet upgrade available


VXvue Image Acquisition Software
The VXVUE acquisition software is an award winning intelligent software solution which utilizes the most advanced imaging processing.

Featuring:

Advanced Image Processing with PureImpact™
Fine Details without Visual Artifacts
Soft Tissue Delineation
Non-grid Chest Processing
Grid Line Removal with Clear Resolution
Fine Tuning
Easy Customization
Optimized for Various Applications
Patient Multitask Management

Standard FM
Standard FM

Standard FM

Medlink's Floor Mounted Digital Radiography System

Our system  Model GXR-40S-A, is a state-of-the-art, diagnostic digital radiography system designed for today’s high-volume imaging departments.

Featuring:
40kW High frequency X-ray generator with constant potential power output for consistent high quality images.
Floor Mounted Tube Stand
6-Way Float Top Table with extended travel capabilities.
Vertical Wall Bucky Stand.
VIVIX 1417 Wireless DR Panel with VXvue acquisition software.
(5) Year Manufacturer Warranty on both the system and DR Panel.


Floor Mounted Tube Stand

Featuring:
Tube Rotation Angle: ±180°(Display: ±135°)
Tube Stroke:
Longitudinal: Max 82.67 in (2,100 mm)
Transverse(Lateral): 8.66 in (220 mm) Center detent
Vertical: 52.36 in (1,330 mm)
[17 in - 69.2 in (430-1,760 mm) from floor to focus]
Lock(Brake): EM Lock, Switch on/off
Column Rotation: 90°step, electric or foot push switch
Electrical Rating: 24VDC,3A
Dimension: 81 in (H) x 44.9 in (D)


6-Way Float Top Table
Featuring:

Tabletop Max Patient Weight: 300kg (660lbs)
Tabletop Movement:
Longitudinal: 39.3 in (±19.6 in)
Transverse(Lateral): 9.84 in (±4.9 in)
Vertical Travel: 11.8 in (21.6 in - 33.46 in)
Detector Movement: Longitudinal: 13.8 in (350 mm)
Tabletop Size: 86.6 in (W) x 31.9 in (D) x 1.8 in (H)
Bucky Type: Moving Grid: FD 34-44inch ; 103 lpi ratio10:1
Lock(Brake): EM Lock, Foot switch on/off
Dimension: 86.6 in (W) x 31.9 in (D) x 33.5 in (H)


Vertical Wall Bucky Stand
Featuring:

Detector Movement:
Vertical 54.72 in (1,390 mm)
16.5 in - 71.25 (420-1,810 mm) from floor to Bucky center
Bucky Type: Moving Grid: 103 lpi, ratio 8:1, 4.26 ft(130cm) grid
Lock(Brake): EM Lock, Foot switch on/off
Electrical Rating: 24VDC, 1A
Dimension: Max 75.6 in (H) x 29 in (W) x 16.14 in (D)


VIVIX 1417W Cesium Wireless DR Panel and Workstation
Featuring:

Active area of 14" x 17"
High spatial resolution with 140um pixel array
Stable and reliable automatic exposure detection (Anytime™)
Fast wireless communication by IEEE 802.11n (Inside AP™)
Viewer software running on Windows™ OS (VXvue™)
Ready-to-go Plug and Play System
Dell Monitor
CPU: Intel i7 Quad Core Processor
RAM: 16GB DDR4
OS: 256GB SSD
DATA: 1TB or 2TB Raid1
24" Touchscreen Monitor
Workstation includes 5-year Manufacturers Warranty
Tablet upgrade available


VXvue Image Acquisition Software
The VXVUE acquisition software is an award winning intelligent software solution which utilizes the most advanced imaging processing.

Featuring:

Advanced Image Processing with PureImpact™
Fine Details without Visual Artifacts
Soft Tissue Delineation
Non-grid Chest Processing
Grid Line Removal with Clear Resolution
Fine Tuning
Easy Customization
Optimized for Various Applications
Patient Multitask Management

bottom of page
