LG DR Systems

10x12 DR Wireless

10x12 DR Wireless

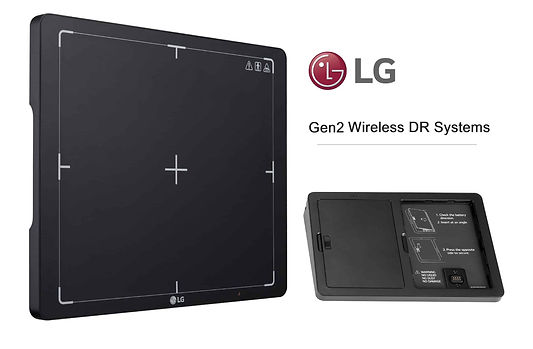

LG GEN2 10×12 WIRELESS DR SYSTEM


Features:
Light yet durable carbon-fiber housing
IP68 Rated for dust/liquid resistance
Rapid image availability (3 seconds)
Highly sensitive Csl AED detector (16 bit A/D conversion
Lightweight 1.8kg including battery
Maximum Load Weight: Uniform load 400kg, Point load 200kg

​

System Includes:
Cassette-sized 25x30cm (10×12″) Digital X-ray Detector (DXD)
2-Bay battery charging station with two (2) Lithium batteries
Choice of Workstation:
Lenovo Tiny-in-One (TIO) Workstation: 512GB SSD with 24″ touchscreen LCD, or
Lenovo P53 Notebook computer.
LG Image Advanced Workstation Software (AWS) to DICOM Store/Send X-ray Images
Marking Tools, Annotations, CD Burning, Win/Level, Measurements (lines, angles, etc.)
Automatic Image Stitching/Smoothing
PACS options are available, request information and pricing.

Warranty Terms:
Three Year LG Manufacturer’s Defect Warranty on Detector for Workmanship
Extended Warranty for years 4 & 5 are available for purchase.
Three Year warranty covers battery charger and batteries
Includes Lifetime Drop Protection Coverage provision, with deductible.
Three Year Lenovo 24/7 Keep-Your-Drive Warranty on Workstation and LCD

​

To view a video of the 10x12 DR Wireless please click here.

14x17 DR Wireless

14x17 DR Wireless

LG GEN2 14×17 WIRELESS DR SYSTEM


Features:
Light yet durable carbon-fiber housing
IP68 Rated for dust/liquid resistance
Rapid image availability (3 seconds)
Highly sensitive Csl AED detector (16 bit A/D conversion
Lightweight 3.2kg including battery
Maximum Load Weight: Uniform load 400kg, Point load 200kg

​

System Includes:
Cassette-sized 35x43cm (14×17″) Digital X-ray Detector (DXD)
2-Bay battery charging station with two (2) Lithium batteries
Choice of Workstation:
Lenovo Tiny-in-One (TIO) Workstation: 512GB SSD with 24″ touchscreen LCD, or
Lenovo P53 Notebook computer.
LG Image Advanced Workstation Software (AWS) to DICOM Store/Send X-ray Images
Marking Tools, Annotations, CD Burning, Win/Level, Measurements (lines, angles, etc.)
Automatic Image Stitching/Smoothing
PACS options are available, request information and pricing.

Warranty Terms:
Three Year LG Manufacturer’s Defect Warranty on Detector for Workmanship
Extended Warranty for years 4 & 5 are available for purchase.
Three Year warranty covers battery charger and batteries
Includes Lifetime Drop Protection Coverage provision, with deductible.
Three Year Lenovo 24/7 Keep-Your-Drive Warranty on Workstation and LCD

​

To view a video of the 14x17 DR Wireless please click here.

17x17 Chiro DR Wired

17x17 Chiro DR (Wired)

Features:
Light yet durable carbon-fiber housing
IP41 Rated for dust/liquid resistance
Rapid image availability (3 seconds)
Highly sensitive Csl AED detector (16 bit A/D conversion
Lightweight 3.2kg (7lb)
Maximum Load Weight: Uniform load 150kg (331lb), Point load 100kg (220lb)


System Includes:
Cassette-sized 43x43cm (17×17″) Flat Panel Detector (FPD)
20′ Tethered Communication Cable with Interface/Power Supply Box
Lenovo Tiny-in-One (TIO)
Workstation: 512GB SSD with 24″ Touchscreen LCD
LG Image Acquire Software to DICOM Store/Send/View X-ray Images
Marking Tools, Annotations, CD
Burning, Win/Level, Measurements (lines, angles, etc.)


Warranty Terms:
Three Year LG Manufacturer’s Defect
Warranty on Detector for Workmanship
Does not provide coverage for damage caused by accidents
Three Year Lenovo 24/7 Keep-Your-Drive Warranty on Workstation and LCD

17x17 DR Wireless

17x17 DR (Wireless)

LG GEN2 WIRELESS 17×17 DR SYSTEM


Features:
Light yet durable carbon-fiber housing
IP68 Rated for dust/liquid resistance
Rapid image availability (3 seconds)
Highly sensitive Csl AED detector (16 bit A/D conversion
Lightweight 3.7kg including battery
Maximum Load Weight: Uniform load 400kg, Point load 200kg

​

System Includes:
Cassette-sized 43x43cm (17×17″) Digital X-ray Detector (DXD)
2-Bay battery charging station with two (2) Lithium batteries
Choice of Workstation:
Lenovo Tiny-in-One (TIO) Workstation: 512GB SSD with 24″ touchscreen LCD, or
Lenovo P53 Notebook computer.
LG Image Advanced Workstation Software (AWS) to DICOM Store/Send X-ray Images
Marking Tools, Annotations, CD Burning, Win/Level, Measurements (lines, angles, etc.)
Automatic Image Stitching/Smoothing
PACS options are available, request information and pricing.

Warranty Terms:
Three Year LG Manufacturer’s Defect Warranty on Detector for Workmanship
Extended Warranty for years 4 & 5 are available for purchase.
Three Year warranty covers battery charger and batteries
Includes Lifetime Drop Protection Coverage provision, with deductible.
Three Year Lenovo 24/7 Keep-Your-Drive Warranty on Workstation and LCD

​

To view a video of the 17x17 DR (Wireless) please click here.

17x17 Vet DR Wired
17x17 Vet DR Wired

17x17 Vet DR Wired

Features:
Light yet durable carbon-fiber housing
IP41 Rated for dust/liquid resistance
Rapid image availability (3 seconds)
Highly sensitive Csl AED detector (16 bit A/D conversion
Lightweight 3.2kg (7lb)
Maximum Load Weight: Uniform load 150kg (331lb), Point load 100kg (220lb)


System Includes:
Cassette-sized 43x43cm (17×17″) Flat Panel Detector (FPD)
20′ Tethered Communication Cable with Interface/Power Supply Box
Lenovo Tiny-in-One (TIO)
Workstation: 512GB SSD with 24″ Touchscreen LCD
LG Image Acquire Software to DICOM Store/Send/View X-ray Images
Marking Tools, Annotations, CD
Burning, Win/Level, Measurements (lines, angles, etc.)


Warranty Terms:
Three Year LG Manufacturer’s Defect
Warranty on Detector for Workmanship
Does not provide coverage for damage caused by accidents
Three Year Lenovo 24/7 Keep-Your-Drive Warranty on Workstation and LCD
